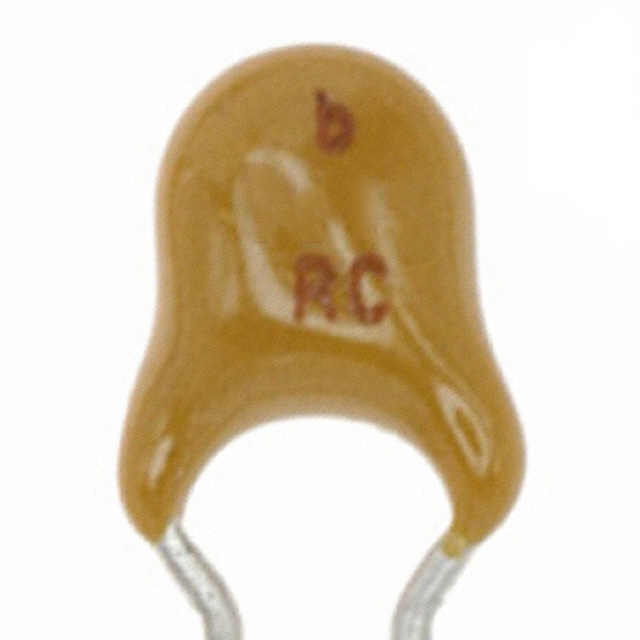

0ZRC0185FF1A
PTC Resettable Fuses
- Manufacturer No:
- 0ZRC0185FF1A
- Manufacture:
- Bel Fuse, Inc.
- Package:
- Radial, Disc
- Datasheet:
- 0ZRC0185FF1A
- Description:
- PTC RESET FUSE 90V 1.85A RADIAL
In Stock
3964 pcs On sales
$0.38
Product Parameter
- Ratings
- -
- Current - Trip (It)
- 3.7A
- Approvals
- cURus, TUV
- Height - Seated (Max)
- 0.902" (22.90mm)
- Packaging
- Bulk
- Operating Temperature
- -40°C ~ 85°C
- Part Status
- Active
- Current - Hold (Ih) (Max)
- 1.85A
- Lead Spacing
- 0.201" (5.10mm)
- Resistance - Initial (Ri) (Min)
- 80 mOhms
- Time to Trip
- 12.6s
- Resistance - Post Trip (R1) (Max)
- 190 mOhms
- Current - Max
- 40A
- Mounting Type
- Through Hole
- Voltage - Max
- 90V
- Package / Case
- Radial, Disc
- Type
- Polymeric
- Thickness (Max)
- -
- Series
- 0ZRC
- Size / Dimension
- 0.701" L x 0.122" W (17.80mm x 3.10mm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
0ZRC0185FF1A Relevant information
0ZRC0010FF1E
PTC RESET FUSE 90V 100MA RADIAL
0ZRC0010FF2E
PTC RESET FUSE 90V 100MA RADIAL

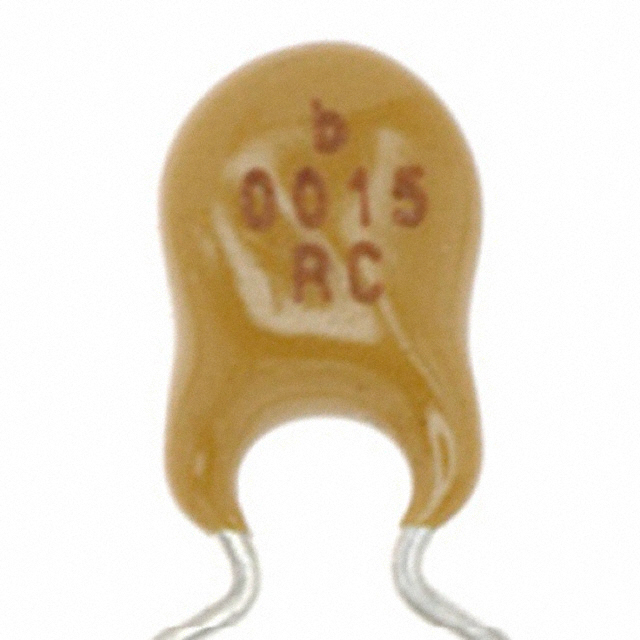

0ZRC0015FF1E
PTC RESET FUSE 90V 150MA RADIAL
0ZRC0015FF2E
PTC RESET FUSE 90V 150MA RADIAL

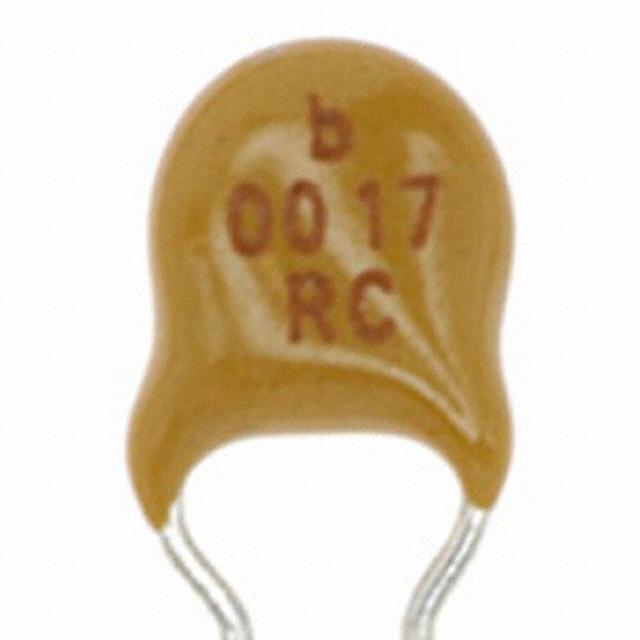

0ZRC0017FF1E
