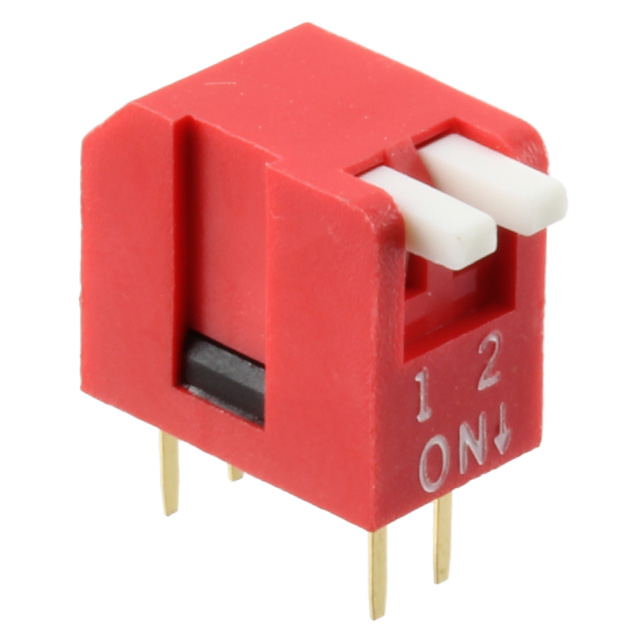

DPL06
DIP Switches
- Manufacturer No:
- DPL06
- Manufacture:
- APEM Inc.
- Datasheet:
- DPL06
- Description:
- SWITCH PIANO DIP SPST 50MA 24V
In Stock
0 pcs On sales
$0
Product Parameter
- Length
- 0.661" (16.80mm)
- Voltage Rating
- 24VDC
- Series
- DPL
- Electrical Life
- 2,000 Cycles
- Circuit
- SPST
- Mechanical Life
- 5,000 Cycles
- Features
- Epoxy Sealed Terminals
- Contact Material
- Phosphor Bronze
- Washable
- No
- Termination Style
- PC Pin
- Packaging
- Tube
- Height Above Board
- 0.402" (10.20mm)
- Part Status
- Obsolete
- Number of Positions
- 6
- Actuator Type
- Piano
- Current Rating (Amps)
- 50mA
- Body Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Operating Temperature
- -20°C ~ 70°C
- Mounting Type
- Through Hole, Right Angle
- Actuator Level
- Raised
- Pitch
- 0.100" (2.54mm), Full
- Contact Finish
- Gold
