AV09C7L3D2001K
Pushbutton Switches
- Manufacturer No:
- AV09C7L3D2001K
- Manufacture:
- APEM Inc.
- Datasheet:
- AV09C7L3D2001K
- Description:
- SWITCH PUSH SPST-NO 0.05A 24V
In Stock
294 pcs On sales
$95.82
Product Parameter
- Features
- Sealed - Fully
- Current Rating (Amps)
- 50mA (DC)
- Packaging
- Bulk
- Operating Temperature
- -30°C ~ 70°C
- Part Status
- Active
- Panel Cutout Dimensions
- Circular - 19.20mm Dia
- Actuator Type
- Round, Button, Flush
- Illumination Type, Color
- LED, Blue
- Mounting Type
- Panel Mount, Front
- Illumination Voltage (Nominal)
- 2 VDC
- Electrical Life
- 1,000,000 Cycles
- Mechanical Life
- 100,000 Cycles
- Switch Function
- Off-Mom
- Termination Style
- Solder Lug
- Type
- Vandal Resistant, Illuminated
- Ingress Protection
- IP65 - Dust Tight, Water Resistant
- Series
- AV
- Voltage Rating - DC
- 24V
- Circuit
- SPST-NO
- Color - Actuator/Cap
- Silver
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
AV09C7L3D2001K Relevant information
AV090003A900
SWITCH PUSH SPST-NO 8A 125V

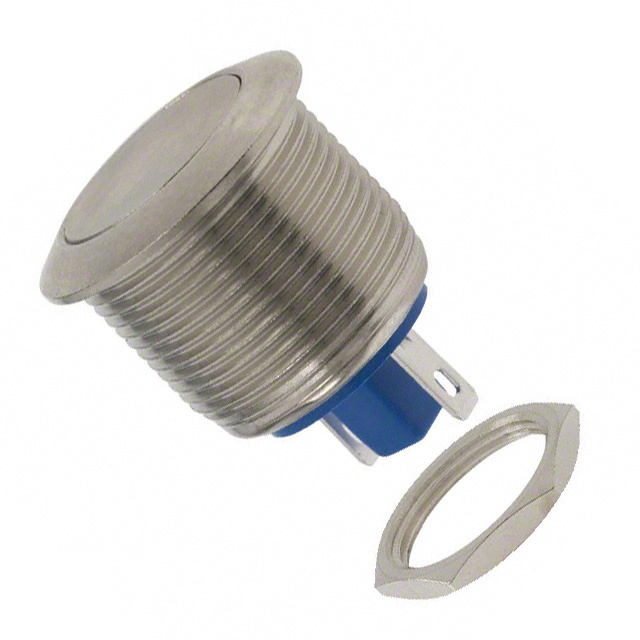

AV091003C200
SWITCH PUSH SPST-NO 2A 48V
AV091003C240N
SWITCH PUSH SPST-NO 2A 48V
AV091003C240T
SWITCH PUSH SPST-NO 2A 48V

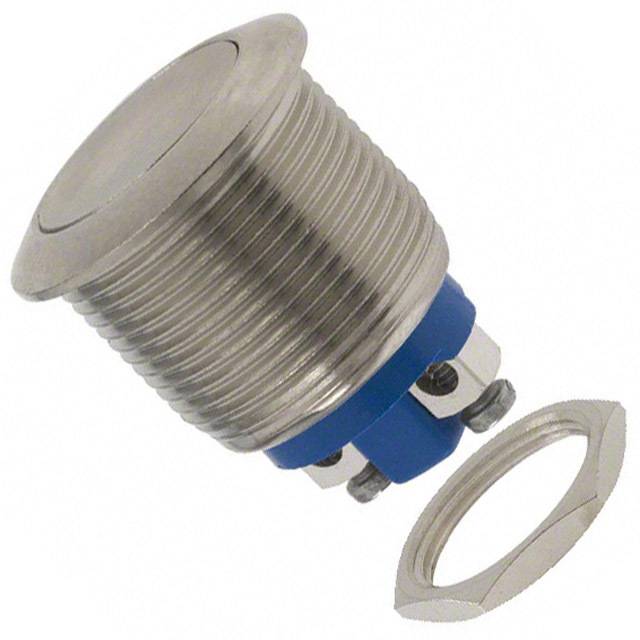

AV091003C900
