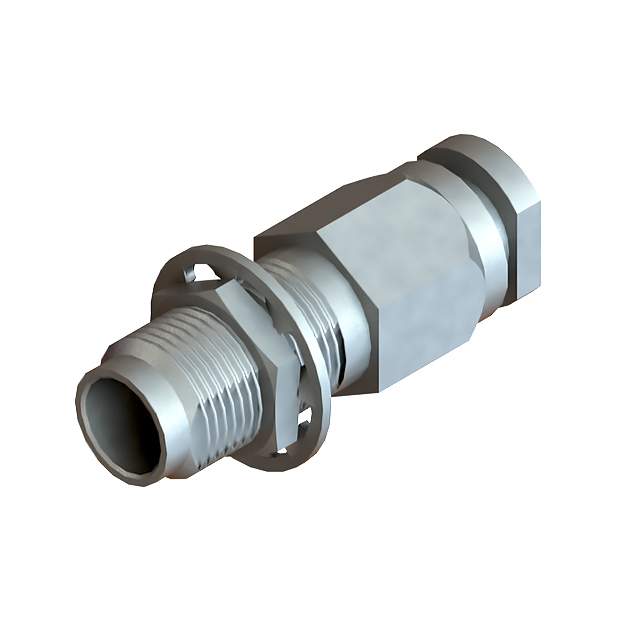

SF3321-60007
Coaxial Connectors (RF)
- Manufacturer No:
- SF3321-60007
- Manufacture:
- Amphenol SV Microwave
- Datasheet:
- SF3321-60007
- Description:
- CONN 1.85MM JCK STR 50OHM SOLDER
In Stock
0 pcs On sales
$146.57
Product Parameter
- Mating Cycles
- 500
- Dielectric Material
- Polychlorotrifluoroethylene (PCTFE)
- Mounting Type
- Panel Mount
- Operating Temperature
- -55°C ~ 125°C
- Series
- -
- Connector Type
- Jack, Female Socket
- Center Contact Plating
- Gold
- Features
- -
- Fastening Type
- Threaded
- Center Contact Material
- Beryllium Copper
- Includes
- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Insertion Loss
- -
- Impedance
- 50Ohm
- Connector Style
- 1.85mm
- Packaging
- Bag
- Frequency - Max
- 65GHz
- Body Finish
- -
- Number of Ports
- 1
- Cable Group
- RG-405 (.085" Semi Rigid)
- Mounting Feature
- Bulkhead - Front Side Nut
- Part Status
- Active
- Ingress Protection
- -
- Body Material
- Stainless Steel
- Shield Termination
- Solder
- Housing Color
- Silver
- Contact Termination
- Solder
