SFW22S-6STME1LF
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- SFW22S-6STME1LF
- Manufacture:
- Amphenol ICC (FCI)
- Datasheet:
- SFW22S-6STME1LF
- Description:
- CONN CIC VERT 22POS 1.00MM SMD
In Stock
0 pcs On sales
$0.43
Product Parameter
- Mating Cycles
- 10
- Dielectric Material
- Thermoplastic, Glass Filled
- Mounting Type
- Surface Mount
- Number of Positions
- 22
- Actuator Color
- Black
- Current Rating (Amps)
- 1A
- Cable End Type
- Tapered
- Operating Temperature
- -55°C ~ 85°C
- Contact Finish
- Tin
- Connector/Contact Type
- Contacts, Vertical - 1 Sided
- Pitch
- 0.039" (1.00mm)
- Flat Flex Type
- CIC
- Contact Finish Thickness
- -
- Series
- SFW
- Voltage Rating
- 100V
- Material Flammability Rating
- UL94 V-0
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Locking Feature
- Slide Lock
- Packaging
- Tape & Reel (TR)
- Contact Material
- Phosphor Bronze
- Part Status
- Active
- Actuator Material
- Thermoplastic, Glass Filled
- Termination
- Solder
- FFC, FCB Thickness
- 0.30mm
- Housing Color
- Brown
- Height Above Board
- 0.209" (5.30mm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
SFW22S-6STME1LF Relevant information
SFW20R-1STAE1LF
CONN FPC BOTTOM 20POS 1.00MM R/A

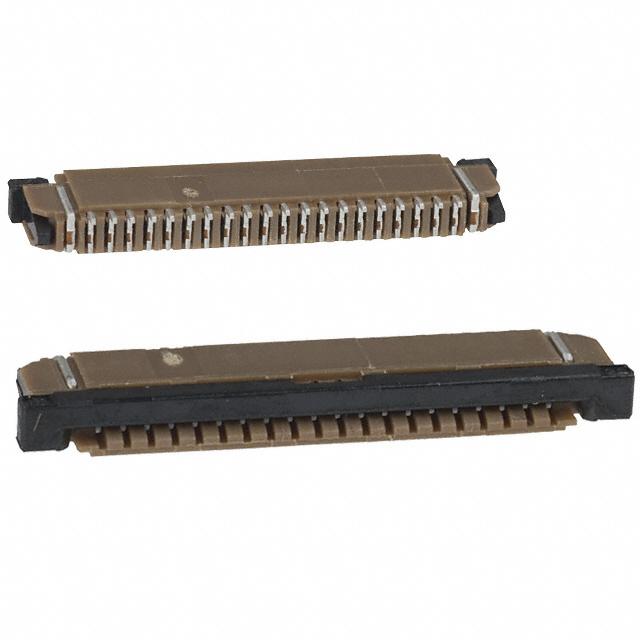

SFW20R-1STE1
