SFV5R-3STBE1HLF
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- SFV5R-3STBE1HLF
- Manufacture:
- Amphenol ICC (FCI)
- Datasheet:
- SFV5R-3STBE1HLF
- Description:
- CONN FPC BOTTOM 5POS 0.50MM R/A
In Stock
0 pcs On sales
$0.13
Product Parameter
- Packaging
- Tape & Reel (TR)
- Contact Material
- Phosphor Bronze
- Part Status
- Active
- Actuator Material
- Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
- Termination
- Solder
- FFC, FCB Thickness
- 0.33mm
- Housing Color
- Black
- Height Above Board
- 0.071" (1.80mm)
- Mating Cycles
- 20
- Dielectric Material
- Polyamide (PA), Nylon, Glass Filled, Halogen Free
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 5
- Actuator Color
- Gray
- Current Rating (Amps)
- 0.5A
- Cable End Type
- Notched
- Operating Temperature
- -55°C ~ 105°C
- Contact Finish
- Gold
- Connector/Contact Type
- Contacts, Bottom
- Pitch
- 0.020" (0.50mm)
- Flat Flex Type
- FPC
- Contact Finish Thickness
- -
- Series
- SFV-R
- Voltage Rating
- 50V
- Material Flammability Rating
- UL94 V-0
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Locking Feature
- Slide Lock
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
SFV5R-3STBE1HLF Relevant information
SFV5R-1STBE1HLF
CONN FFC BOTTOM 5POS 0.50MM R/A
SFV5R-1STE1
CONN FFC BOTTOM 5POS 0.50MM R/A

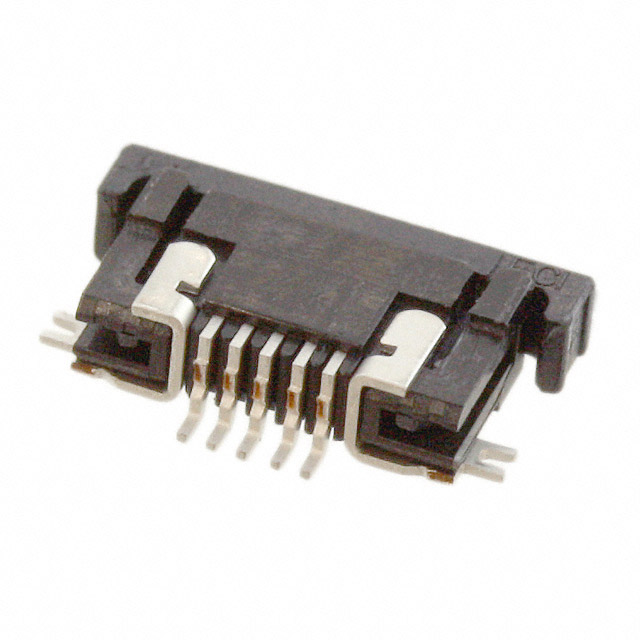

SFV5R-1STE1HLF
CONN FFC BOTTOM 5POS 0.50MM R/A

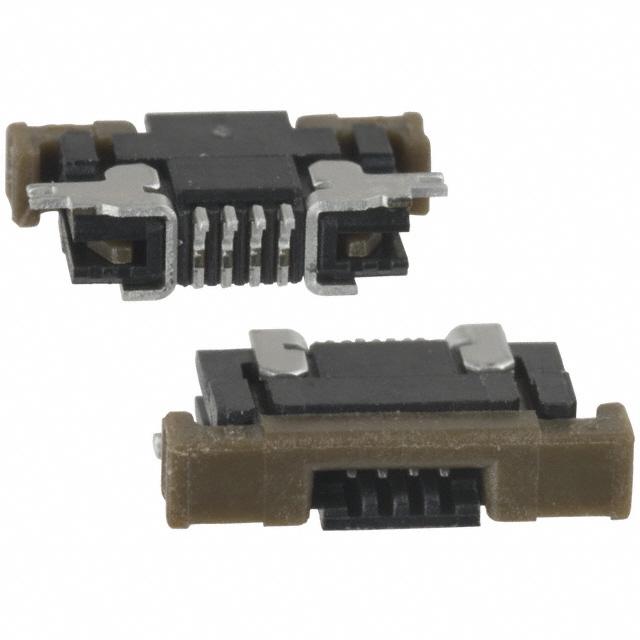

SFV5R-1STE1LF
