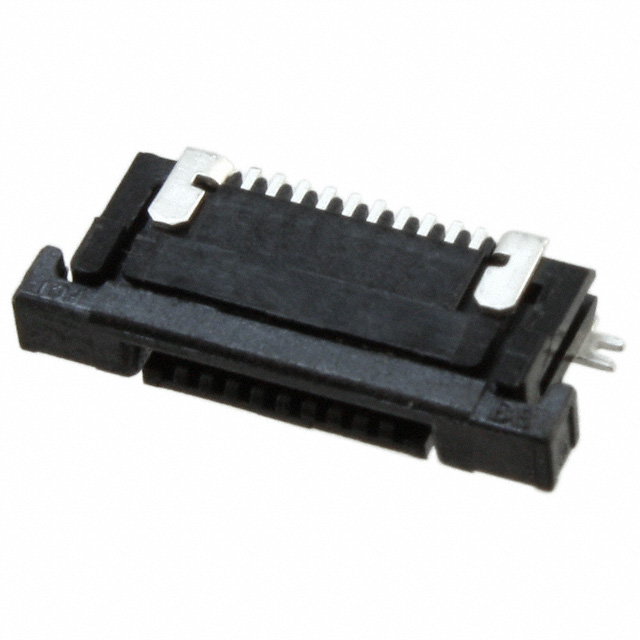

SFV10R-4STE1HLF
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- SFV10R-4STE1HLF
- Manufacture:
- Amphenol ICC (FCI)
- Datasheet:
- SFV10R-4STE1HLF
- Description:
- CONN FPC TOP 10POS 0.50MM R/A
In Stock
5980 pcs On sales
$0
Product Parameter
- Part Status
- Active
- Actuator Material
- Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
- Termination
- Solder
- FFC, FCB Thickness
- 0.33mm
- Housing Color
- Black
- Height Above Board
- 0.071" (1.80mm)
- Mating Cycles
- 20
- Dielectric Material
- Polyamide (PA), Nylon, Glass Filled, Halogen Free
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 10
- Actuator Color
- Gray
- Current Rating (Amps)
- 0.5A
- Cable End Type
- Notched
- Operating Temperature
- -55°C ~ 105°C
- Contact Finish
- Tin
- Connector/Contact Type
- Contacts, Top
- Pitch
- 0.020" (0.50mm)
- Flat Flex Type
- FPC
- Contact Finish Thickness
- -
- Series
- SFV-R
- Voltage Rating
- 50V
- Material Flammability Rating
- UL94 V-0
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Locking Feature
- Slide Lock
- Packaging
- Digi-Reel®
- Contact Material
- Phosphor Bronze
