62684-5521N0ALF
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- 62684-5521N0ALF
- Manufacture:
- Amphenol ICC (FCI)
- Datasheet:
- 62684-5521N0ALF
- Description:
- CONN FPC TOP 55POS 0.50MM R/A
In Stock
0 pcs On sales
$0
Product Parameter
- Actuator Color
- Black
- Current Rating (Amps)
- 0.5A
- Cable End Type
- Tapered
- Operating Temperature
- -55°C ~ 85°C
- Contact Finish
- Gold
- Connector/Contact Type
- Contacts, Top
- Pitch
- 0.020" (0.50mm)
- Flat Flex Type
- FPC
- Contact Finish Thickness
- 2.00µin (0.051µm)
- Series
- OPU
- Voltage Rating
- 50V
- Material Flammability Rating
- UL94 V-0
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Locking Feature
- Slide Lock
- Packaging
- Digi-Reel®
- Contact Material
- Phosphor Bronze
- Part Status
- Discontinued at Digi-Key
- Actuator Material
- Thermoplastic, Glass Filled
- Termination
- Solder
- FFC, FCB Thickness
- 0.30mm
- Housing Color
- Beige
- Height Above Board
- 0.079" (2.00mm)
- Mating Cycles
- 20
- Dielectric Material
- Liquid Crystal Polymer (LCP), Glass Filled
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 55
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
62684-5521N0ALF Relevant information
6268
MACH SCREW BINDING PHILLIPS 4-40
62684-321100ALF
CONN FPC BOTTOM 32POS 0.50MM R/A
62684-32110E9ZLF
CONN FFC 32POS 0.50MM R/A
62684-322100
CONN FFC TOP 32POS 0.50MM R/A

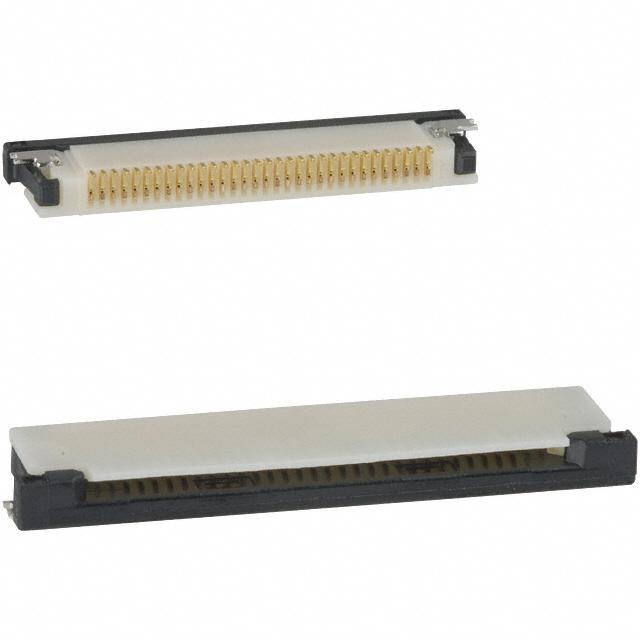

62684-322100ALF
CONN FPC TOP 32POS 0.50MM R/A

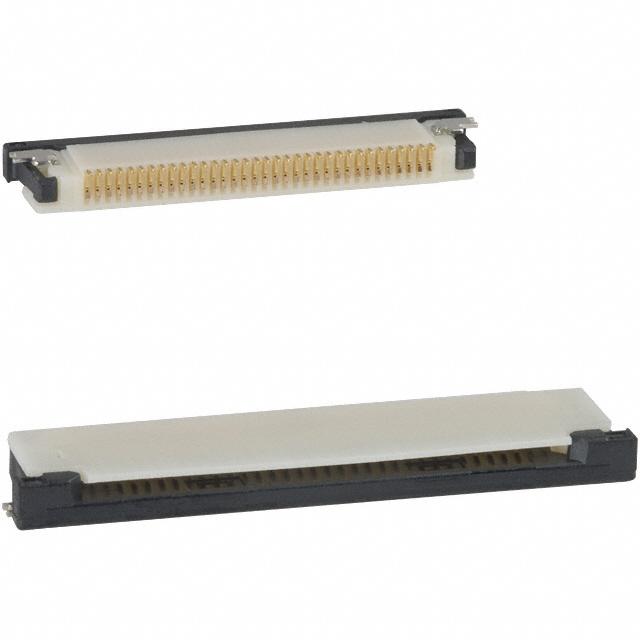

62684-342100ALF
