L77SDEH09SOL2C309
D-Sub Connectors
- Manufacturer No:
- L77SDEH09SOL2C309
- Manufacture:
- Amphenol ICC (Commercial Products)
- Datasheet:
- L77SDEH09SOL2C309
- Description:
- CONN D-SUB RCPT 9POS VERT SOLDER
In Stock
888 pcs On sales
$1.65
Product Parameter
- Connector Type
- Receptacle, Female Sockets
- Operating Temperature
- -55°C ~ 155°C
- Contact Finish
- Gold
- Shell Material, Finish
- Steel, Tin Plated
- Color
- Black
- Flange Feature
- Board Side (4-40)
- Contact Finish Thickness
- 30.0µin (0.76µm)
- Series
- SD
- Number of Rows
- 2
- Material Flammability Rating
- UL94 V-0
- Features
- -
- Voltage Rating
- 250V
- Shell Size, Connector Layout
- 1 (DE, E)
- Packaging
- Tray
- Backset Spacing
- -
- Wire Gauge
- -
- Connector Style
- D-Sub
- Part Status
- Active
- Contact Material
- Phosphor Bronze
- Termination
- Solder
- Ingress Protection
- -
- Contact Form
- Stamped
- Dielectric Material
- Thermoplastic, Glass Filled
- Contact Type
- Signal
- Number of Positions
- 9
- Mounting Type
- Through Hole
- Current Rating (Amps)
- 5A
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
L77SDEH09SOL2C309 Relevant information

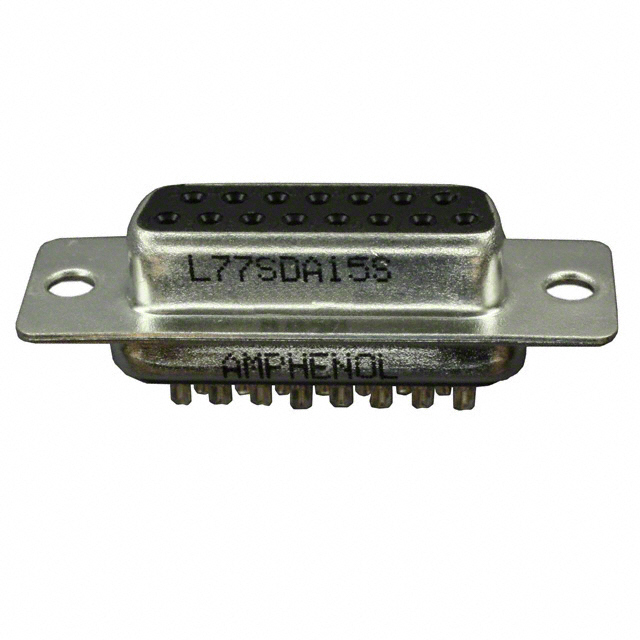

L77SDA15S
