9059C BK005
Coaxial Cables (RF)
- Manufacturer No:
- 9059C BK005
- Manufacture:
- Alpha Wire
- Datasheet:
- 9059C BK005
- Description:

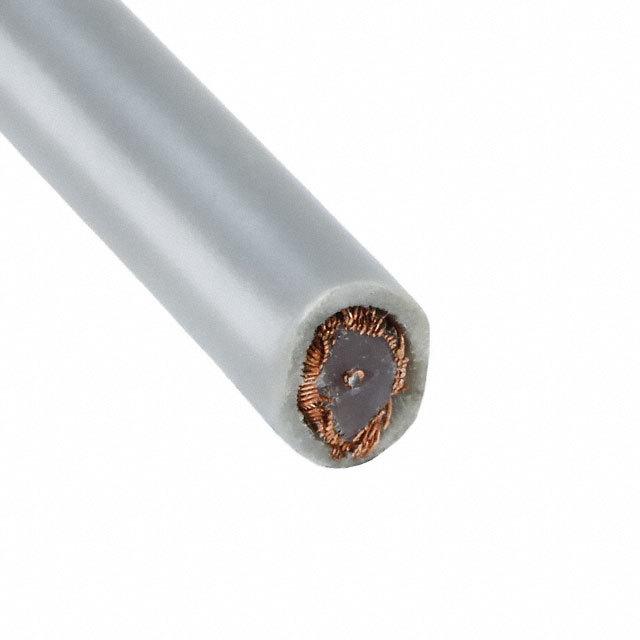

- CABLE COAXIAL RG59 22AWG 100'
In Stock
7 pcs On sales
$102.2
Product Parameter
- Shield Type
- Braid
- Jacket Color
- Black
- Shield Coverage
- 95%
- Usage
- Network
- Shield Material
- Copper, Bare
- Length
- 100.0' (30.48m)
- Conductor Strand
- Solid
- Series
- -
- Conductor Material
- Steel, Copper Coated
- Features
- -
- Dielectric Diameter
- 0.146" (3.71mm)
- Impedance
- 75 Ohms
- Dielectric Material
- Solid Polyethylene (PE)
- Cable Type
- Coaxial
- Operating Temperature
- -20°C ~ 60°C
- Wire Gauge
- 22 AWG (0.32mm²)
- Jacket (Insulation) Diameter
- 0.242" (6.15mm)
- Cable Group
- RG-59
- Jacket (Insulation) Material
- Poly-Vinyl Chloride (PVC)
- Part Status
- Active
- VoP, Velocity of Propagation
- 66
