AON3810
Transistors - FETs, MOSFETs - Arrays
- Manufacturer No:
- AON3810
- Manufacture:
- Alpha & Omega Semiconductor Inc.
- Package:

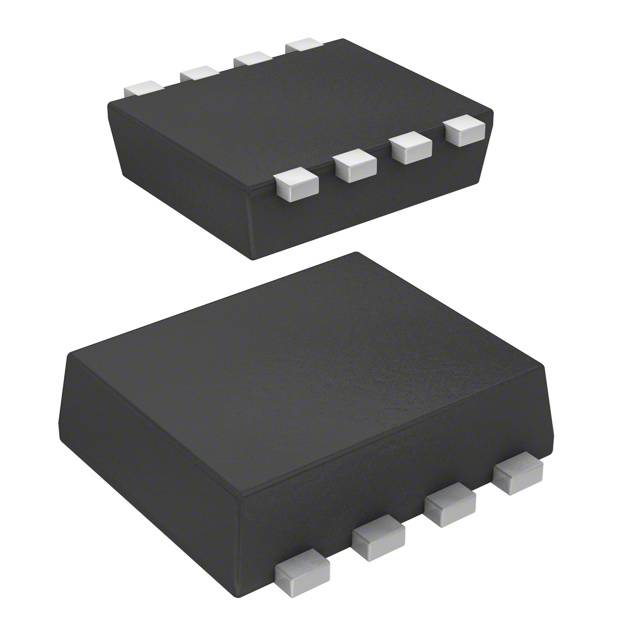

- 8-SMD, Flat Lead
- Datasheet:
- AON3810
- Description:
- MOSFET 2N-CH 20V 8.5A 8-DFN
In Stock
0 pcs On sales
$0
Product Parameter
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 24mOhm @ 7A, 10V
- Supplier Device Package
- 8-DFN (2.9x2.3)
- Series
- -
- Gate Charge (Qg) (Max) @ Vgs
- 5.2nC @ 4.5V
- FET Type
- 2 N-Channel (Dual) Common Drain
- Drain to Source Voltage (Vdss)
- 20V
- Packaging
- Digi-Reel®
- Input Capacitance (Ciss) (Max) @ Vds
- 280pF @ 10V
- FET Feature
- Logic Level Gate
- Current - Continuous Drain (Id) @ 25°C
- -
- Part Status
- Obsolete
- Power - Max
- 2.5W
- Mounting Type
- Surface Mount
- Package / Case
- 8-SMD, Flat Lead
- Vgs(th) (Max) @ Id
- 1V @ 250µA
