ARK-3520P-U7A1E
Single Board Computers (SBCs)
- Manufacturer No:
- ARK-3520P-U7A1E
- Manufacture:
- Advantech Corp
- Datasheet:
- ARK-3520P-U7A1E
- Description:
- INTELCORE WIDE RANGE POWER FANLE
In Stock
0 pcs On sales
$1729
Product Parameter
- Form Factor
- -
- Expansion Site/Bus
- M.2, Mini-PCIe
- Part Status
- Active
- Analog Input:Output
- -
- Cooling Type
- Heat Sink
- Operating Temperature
- -20°C ~ 60°C
- Power (Watts)
- 46.5W
- RAM Capacity/Installed
- 32GB/0GB
- Video Outputs
- HDMI, VGA
- Core Processor
- Intel Core i5-6440EQ
- Watchdog Timer
- -
- Number of Cores
- 4
- USB
- USB 2.0 (2), USB 3.0 (6)
- Size / Dimension
- 8.66" x 9.17" (220mm x 233mm)
- Speed
- 2.7GHz
- Digital I/O Lines
- 16
- Series
- -
- RS-232 (422, 485)
- 8
- Ethernet
- 10/100/1000Mbps
- Storage Interface
- SATA HDD, mSATA
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
ARK-3520P-U7A1E Relevant information

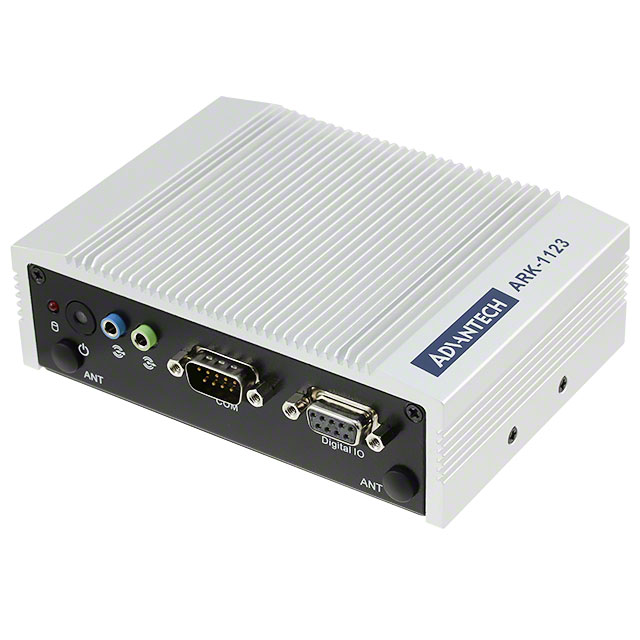

ARK-1123C-S3A1E
FANLESS PC ATOM E3825 1.33GHZ

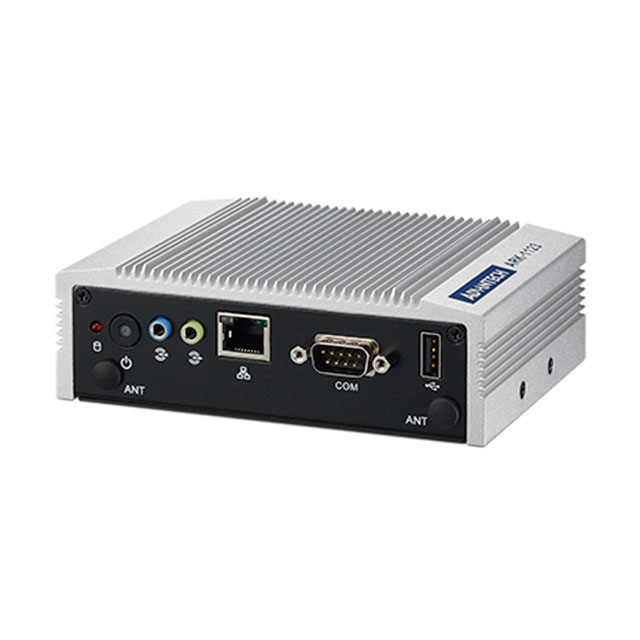

ARK-1123H-U0A1E
FANLESS PC CELERON J1900 2.0GHZ

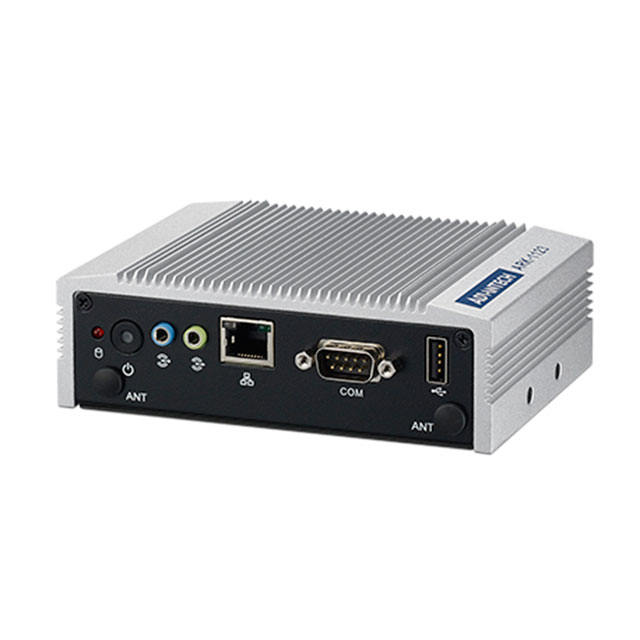

ARK-1123H-U0A2E
