AIAC-1606C-06G-T

Fixed Inductors

Manufacturer No:
AIAC-1606C-06G-T
Manufacture:
Abracon LLC.
Package:
Nonstandard
Datasheet:
AIAC-1606C-06G-T
Description:
LOW PROFILE AIR COIL INDUCTOR 5.

In Stock

0 pcs On sales

$0.21

Product Parameter

Inductance
5.6nH
Frequency - Self Resonant
6.5GHz
Part Status
Active
Inductance Frequency - Test
800MHz
Mounting Type
Surface Mount
Package / Case
Nonstandard
Type
Wirewound
Material - Core
Air
Series
AIAC-1606C
Size / Dimension
0.159" L x 0.122" W (4.04mm x 3.10mm)
Ratings
-
DC Resistance (DCR)
9mOhm Max
Features
-
Current - Saturation
-
Q @ Freq
100 @ 800MHz
Current Rating (Amps)
1.6A
Packaging
Tape & Reel (TR)
Height - Seated (Max)
0.060" (1.52mm)
Shielding
Unshielded
Operating Temperature
-40°C ~ 125°C
Tolerance
±2%
Supplier Device Package
-

Company Profile

Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.

AIAC-1606C-06G-T Relevant information

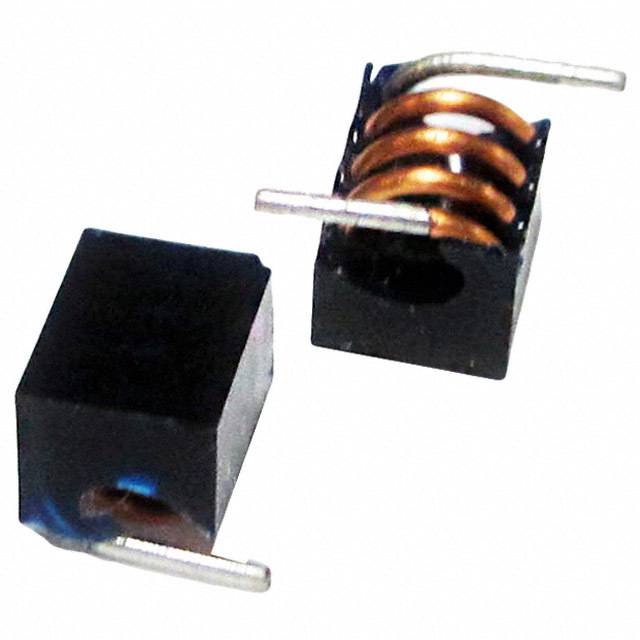

AIAC-0805C-10NK-T
