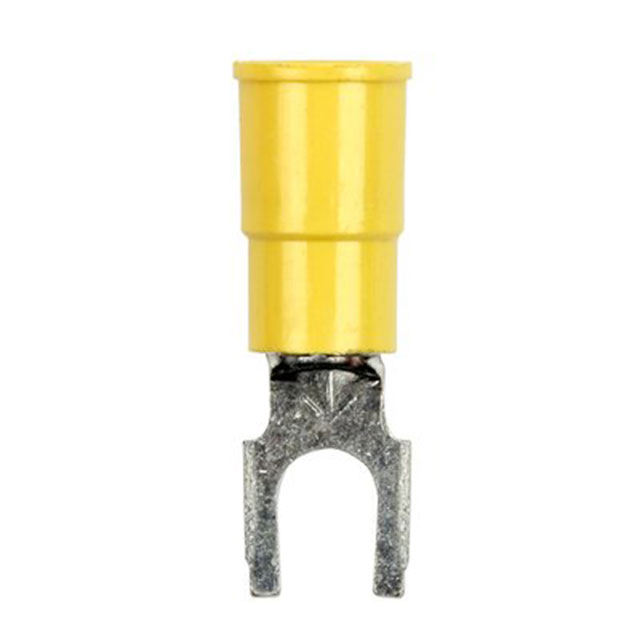

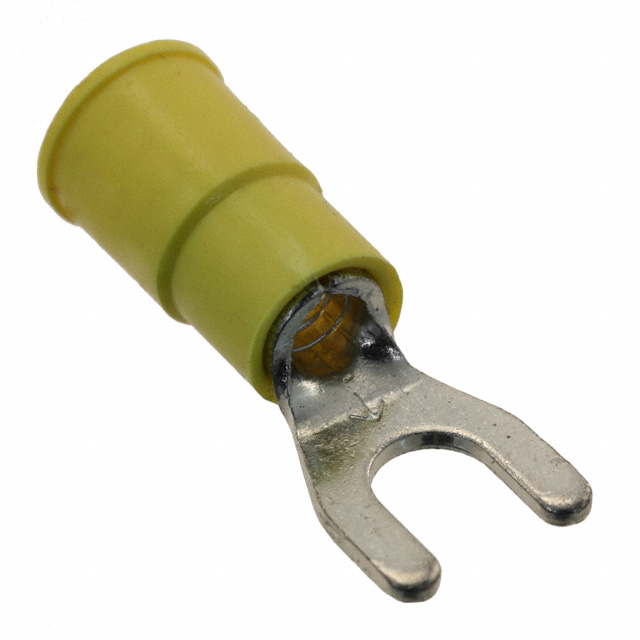

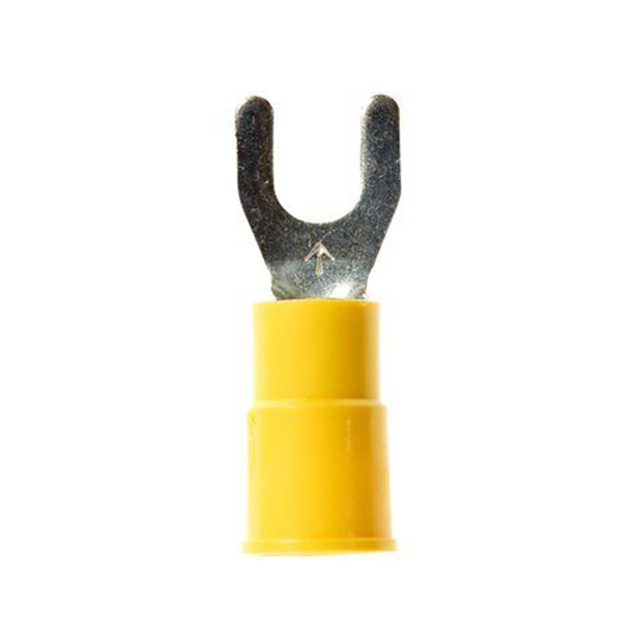

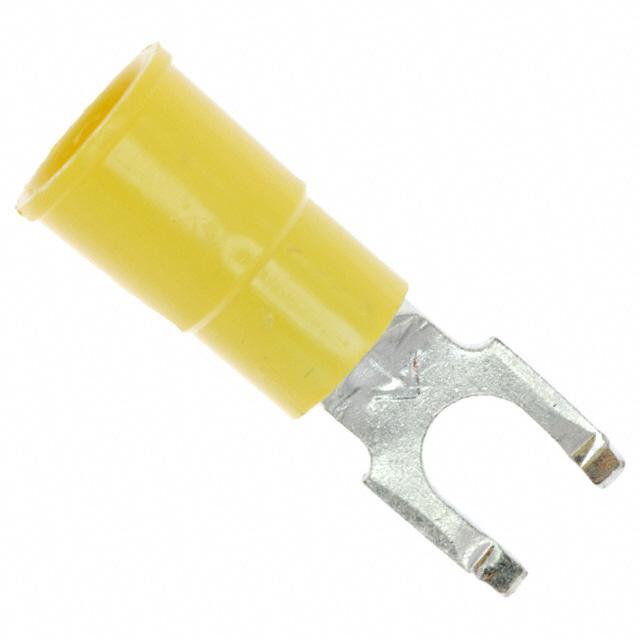

MVU18-6FB/SK

Terminals - Spade Connectors

Manufacturer No:: MVU18-6FB/SK
Manufacture:: 3M
Datasheet:: MVU18-6FB/SK
Description:: CONN SPADE TERM 18-22AWG #6 RED

In Stock

9271 pcs On sales

$0.46

Product Parameter

Part Status: Active

Tongue Inside Opening: -

Termination: Crimp

Length - Ring Center to Termination: 0.250" (6.35mm)

Mounting Type: Free Hanging (In-Line)

Stud/Tab Size: 6 Stud

Terminal Type: Standard

Contact Finish: Tin

Color: Red

Contact Material: Copper, ETP

Series: Scotchlok™

Length - Overall: 0.850" (21.59mm)

Features: Butted Seam

Insulation Diameter: 0.145" (3.68mm)

Packaging: Bulk

Width - Outer Edges: 0.250" (6.35mm)

Insulation: Insulated

Length - Termination: 0.450" (11.43mm)

Wire Gauge: 18-22 AWG

Material - Insulation: Vinyl
