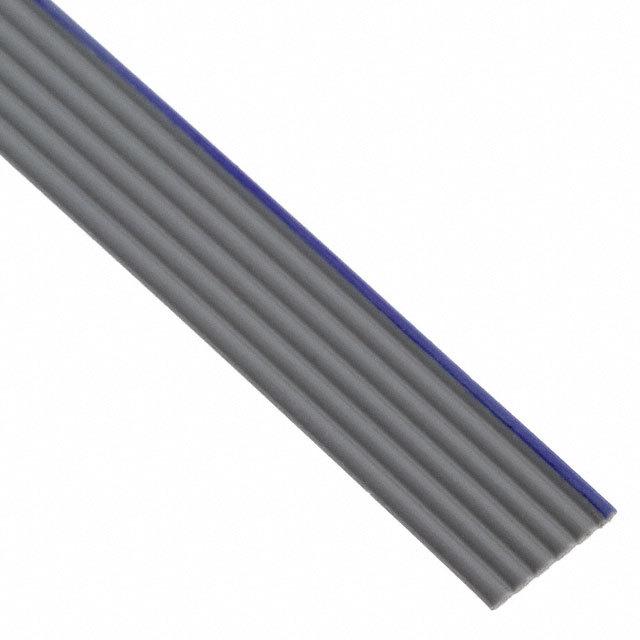

HF365/14SF
Flat Ribbon Cables
- Manufacturer No:
- HF365/14SF
- Manufacture:
- 3M
- Datasheet:
- HF365/14SF
- Description:
- CBL RIBN 14COND 0.050 GRAY 1'
In Stock
0 pcs On sales
$2.05
Product Parameter
- Ribbon Width
- 0.700" (17.78mm)
- Pitch
- 0.050" (1.27mm)
- Conductor Strand
- 7 Strands / 36 AWG
- Length
- 1.00' (304.80mm)
- Ribbon Thickness
- 0.035" (0.89mm)
- Series
- HF365
- Conductor Material
- Copper, Tinned
- Ratings
- UL Style 21682
- First Conductor Mark
- Blue
- Voltage
- 300V
- Number of Conductors
- 14
- Features
- Zippable
- Insulation Resistance
- 10GOhm
- Shielding
- Unshielded
- Operating Temperature
- -40°C ~ 105°C
- Cable Type
- Flat Cable
- Jacket (Insulation) Material
- Polyolefin (PO)
- Wire Gauge
- 28 AWG
- Part Status
- Active
- Jacket Color
- Gray
